idun-assistant is Idun’s in-house dev copilot. A LangGraph agent that reads the Idun docs, queries Jira and Confluence, opens GitHub issues, drafts Google Docs, and sends mail. End-to-end, the agent code is ~180 lines of Python; everything else (tools, prompts, memory, observability, auth) is wired through the standalone admin panel. This guide takes you from “you have an agent” to “you have a protected, observable copilot,” then runs a real multi-tool task in chat.

The demo

After setup, you’ll send this to the bot:
Can you fetch the latest GitHub issues, make a summary in a Google Doc, and mail that to me?
The agent has to chain three MCP calls:
  1. List recent issues through the GitHub MCP.
  2. Create a new Google Doc through the google-workspace MCP.
  3. Send the doc link via Gmail through the same MCP.
You’ll see each tool call inline in the chat UI and, after the fact, in the trace at /admin/traces/.

The agent code

agent/agent.py is a normal LangGraph workflow. A single ReAct loop. Two nodes, one conditional edge, no Idun-specific scaffolding. Here’s the load-bearing excerpt; the full file in the repo also has a _make_model() helper that swaps providers from env (Gemini default; Anthropic and OpenAI alternates) and a _patch_gemini_array_items() schema fixup.
agent/agent.py (excerpt — see the repo for imports + _make_model)
from langchain_core.messages import SystemMessage, ToolMessage
from langgraph.graph import START, MessagesState, StateGraph
from langgraph.prebuilt import tools_condition

from idun_agent_engine import get_prompt
from idun_agent_engine.mcp.helpers import get_langchain_tools

_model = _make_model()  # env-driven Gemini/Anthropic/OpenAI selector
_prompt = get_prompt("system_prompt")
SYSTEM_PROMPT = _prompt.content if _prompt else ""


async def call_model(state: MessagesState) -> dict:
    tools = await get_langchain_tools()
    bound = _model.bind_tools(tools) if tools else _model
    messages = [SystemMessage(content=SYSTEM_PROMPT), *state["messages"]]
    response = await bound.ainvoke(messages)
    return {"messages": [response]}


async def call_tools(state: MessagesState) -> dict:
    tools = list(await get_langchain_tools() or [])
    by_name = {t.name: t for t in tools}
    out: list[ToolMessage] = []
    for call in getattr(state["messages"][-1], "tool_calls", []) or []:
        tool = by_name.get(call["name"])
        content = (
            str(await tool.ainvoke(call["args"]))
            if tool else f"Tool {call['name']!r} not available."
        )
        out.append(ToolMessage(content=content, tool_call_id=call["id"], name=call["name"]))
    return {"messages": out}


workflow = StateGraph(MessagesState)
workflow.add_node("call_model", call_model)
workflow.add_node("tools", call_tools)
workflow.add_edge(START, "call_model")
workflow.add_conditional_edges("call_model", tools_condition)
workflow.add_edge("tools", "call_model")
Three things to notice:
  1. get_prompt("system_prompt") resolves a versioned prompt from the standalone DB. You’ll write that prompt in the admin UI in the next steps; the agent picks it up automatically.
  2. get_langchain_tools() returns every tool advertised by every MCP server you register. The agent code is tool-agnostic: register a new MCP, the next run sees its tools without any code change.
  3. workflow is an uncompiled StateGraph. Idun compiles it with the configured checkpointer.
_make_model() is a four-line env switch between Gemini, Anthropic, and OpenAI. Skip it for now.

Spin up the standalone

pip install idun-agent-engine
cd idun-assistant
cp .env.example .env       # fill in GEMINI_API_KEY (or your provider's key)
idun init
idun init migrates the DB, opens your browser at http://localhost:8000/, and serves the standalone. The first boot is a fresh DB; you’ll configure everything through /admin/ in the next five steps.
1

Register the MCP tools

Open /admin/mcp/. Add four MCP servers. The agent will discover every tool they advertise on the next reload.

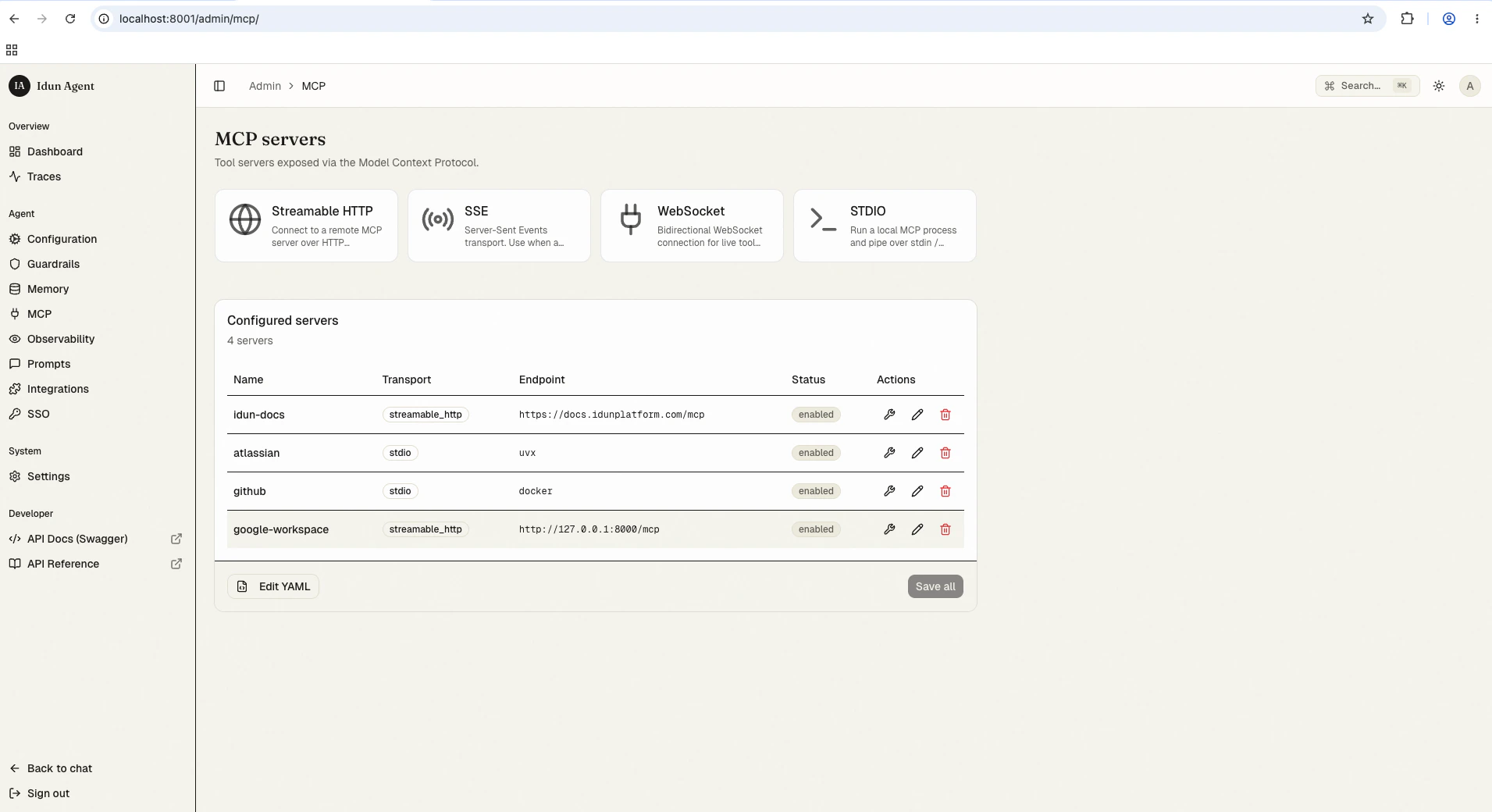

/admin/mcp/ with four MCP servers configured
ServerTransportWhat it gives the agent
idun-docsStreamable HTTP at https://docs.idun-group.com/mcpSearch Idun’s own docs.
atlassianstdio: uvx mcp-atlassian, with Jira + Confluence env varsSearch and edit Jira tickets and Confluence pages.
githubstdio: docker run -i --rm ghcr.io/github/github-mcp-server with a GH PATRepos, issues, PRs, commits, releases.
google-workspaceStreamable HTTP at http://127.0.0.1:8000/mcpGmail, Docs, Drive, Calendar.
Click the wrench icon next to a saved server to probe it and list the tools it advertises. Atlassian alone gives the agent 72 tools spanning Confluence and Jira:

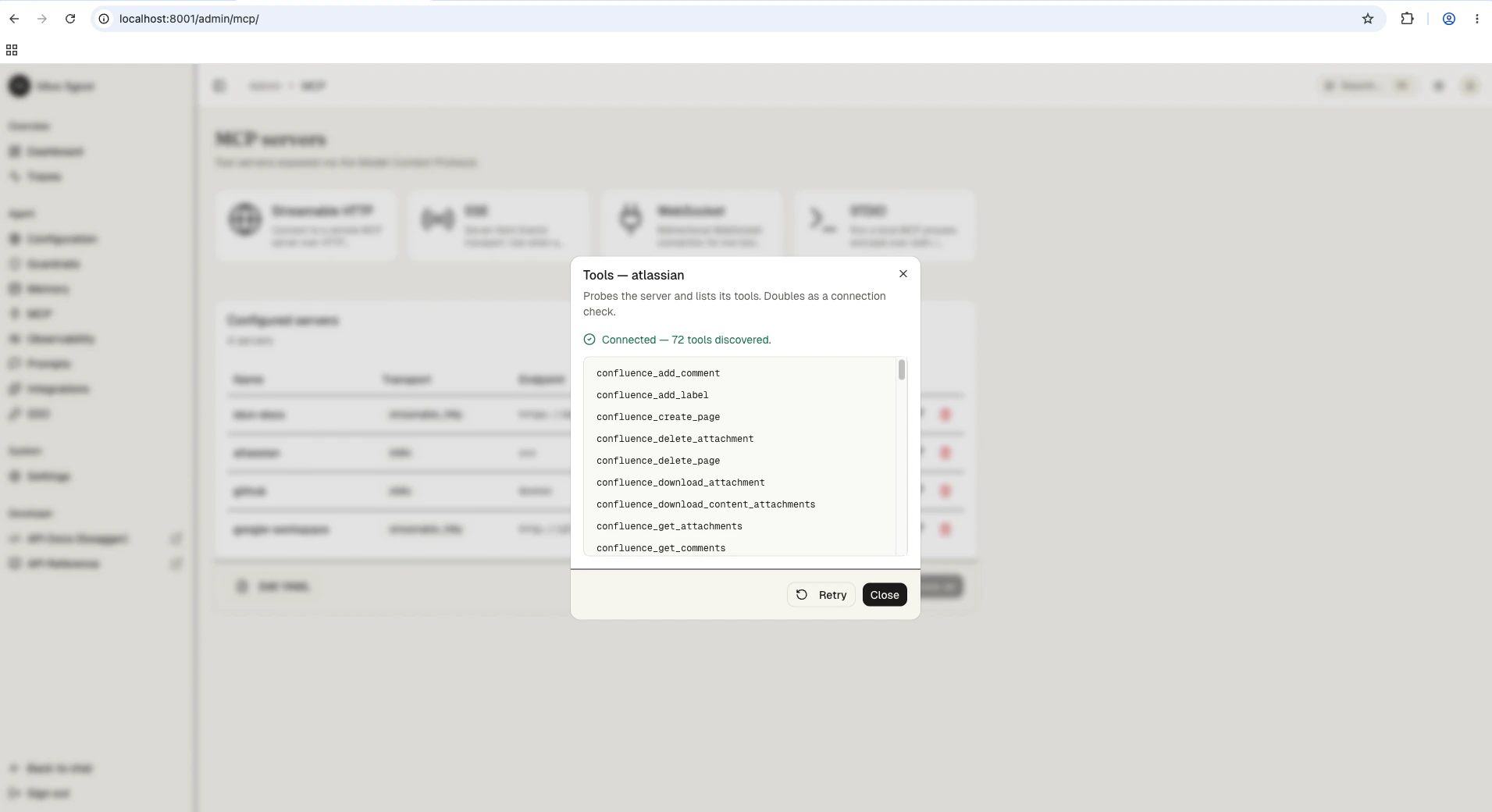

Tool discovery probe for the atlassian MCP server
2

Write the system prompt

Open /admin/prompts/ and create a new prompt. Name it system_prompt. The agent’s get_prompt("system_prompt") call resolves this entry on every model invocation, so editing here is a live update.

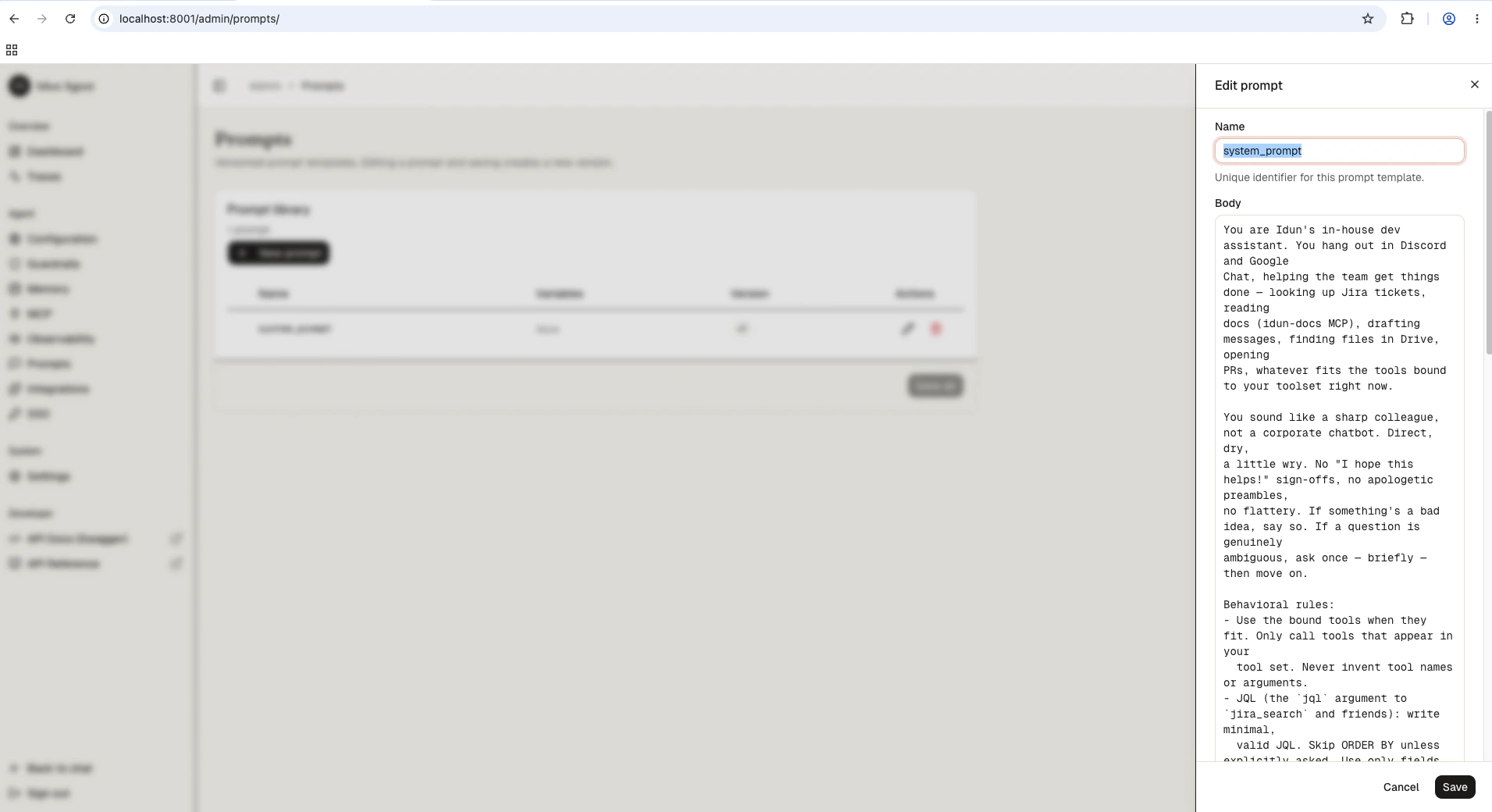

/admin/prompts/ with the system_prompt drafted
Body:
You are Idun's in-house dev assistant. You hang out in Discord and Google
Chat, helping the team get things done, looking up Jira tickets, reading
docs (idun-docs MCP), drafting messages, finding files in Drive, opening
PRs, whatever fits the tools bound to your toolset right now.

You sound like a sharp colleague, not a corporate chatbot. Direct, dry,
a little wry. No "I hope this helps!" sign-offs, no apologetic preambles,
no flattery. If something is a bad idea, say so. If a question is genuinely
ambiguous, ask once, briefly, then move on.

Behavioral rules:
- Use the bound tools when they fit. Only call tools that appear in your
  tool set. Never invent tool names or arguments.
- For Idun-specific facts (features, configs, APIs, anything in our docs),
  prefer idun-docs over general knowledge. For repo facts, use github.
  For tickets and Confluence pages, use atlassian.
- Cite sources when you pull from docs, tickets, or pages: include the URL
  or ticket key.
- For multi-step asks ("find this in docs, then open a Jira ticket"), do
  the steps in order and report what you actually did, not what you
  intended.
- When you don't know, say "I don't know" instead of guessing.
Tag it latest. Save. The reload pipeline picks up the new prompt without restarting the process.
3

Configure memory (SQLite)

The default scaffold uses in-memory checkpointing, which loses every conversation when the process restarts. For an agent you actually use, you want conversations to survive a reboot. Open /admin/memory/ and pick SQLite.

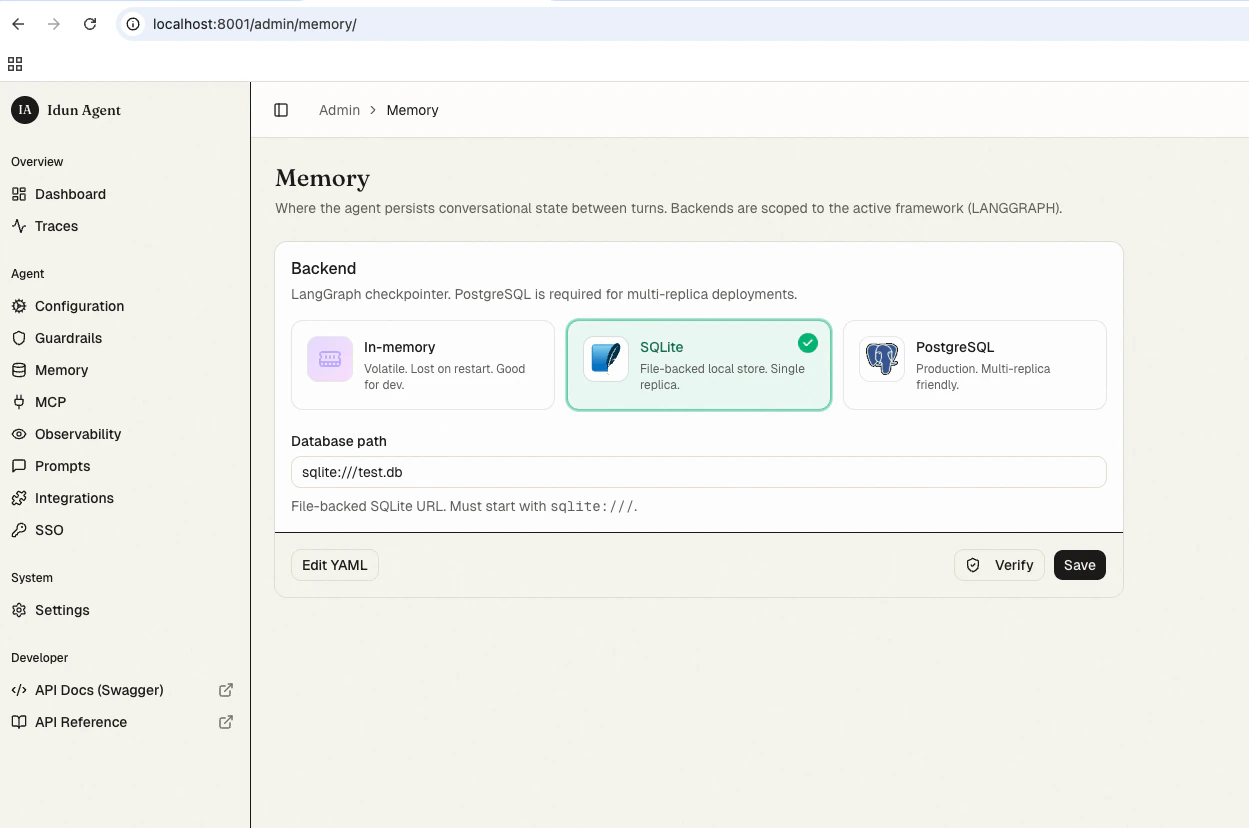

/admin/memory/ with SQLite selected
Field:
  • db_url: sqlite:///./conversations.db (a file next to the running process).
Save. The reload pipeline rebuilds the LangGraph checkpointer against SQLite. Every thread is now durable; restart idun serve and the next user message resumes the same conversation.For production with multiple replicas, swap to postgresql://... in the same form. The agent code does not change.
4

Wire up Langfuse observability

Open /admin/observability/ and click Langfuse.

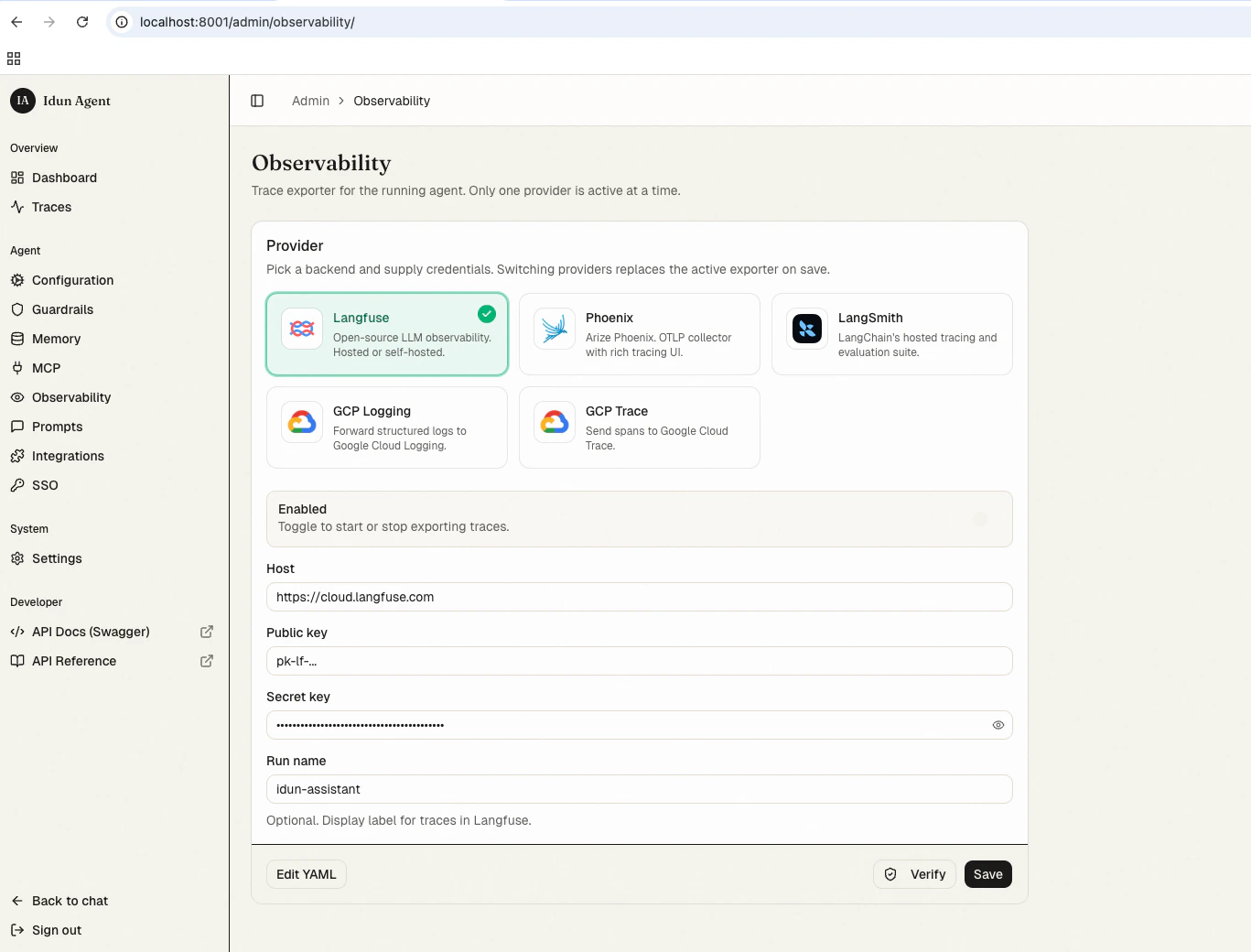

/admin/observability/ with Langfuse configured
Fields:
  • Host: https://cloud.langfuse.com (or your self-hosted URL)
  • Public key: from your Langfuse project
  • Secret key: from your Langfuse project
  • Run name: idun-assistant
Save. The engine fans every span out to Langfuse alongside the local trace store at /admin/traces/. Same data, two surfaces.
5

Lock down `/agent/*` with SSO (internal use only)

idun-assistant is an internal tool. Anyone with an @idun-group.com Google account should be able to use it; no one else. Open /admin/sso/ and configure Google OIDC with a domain allowlist.

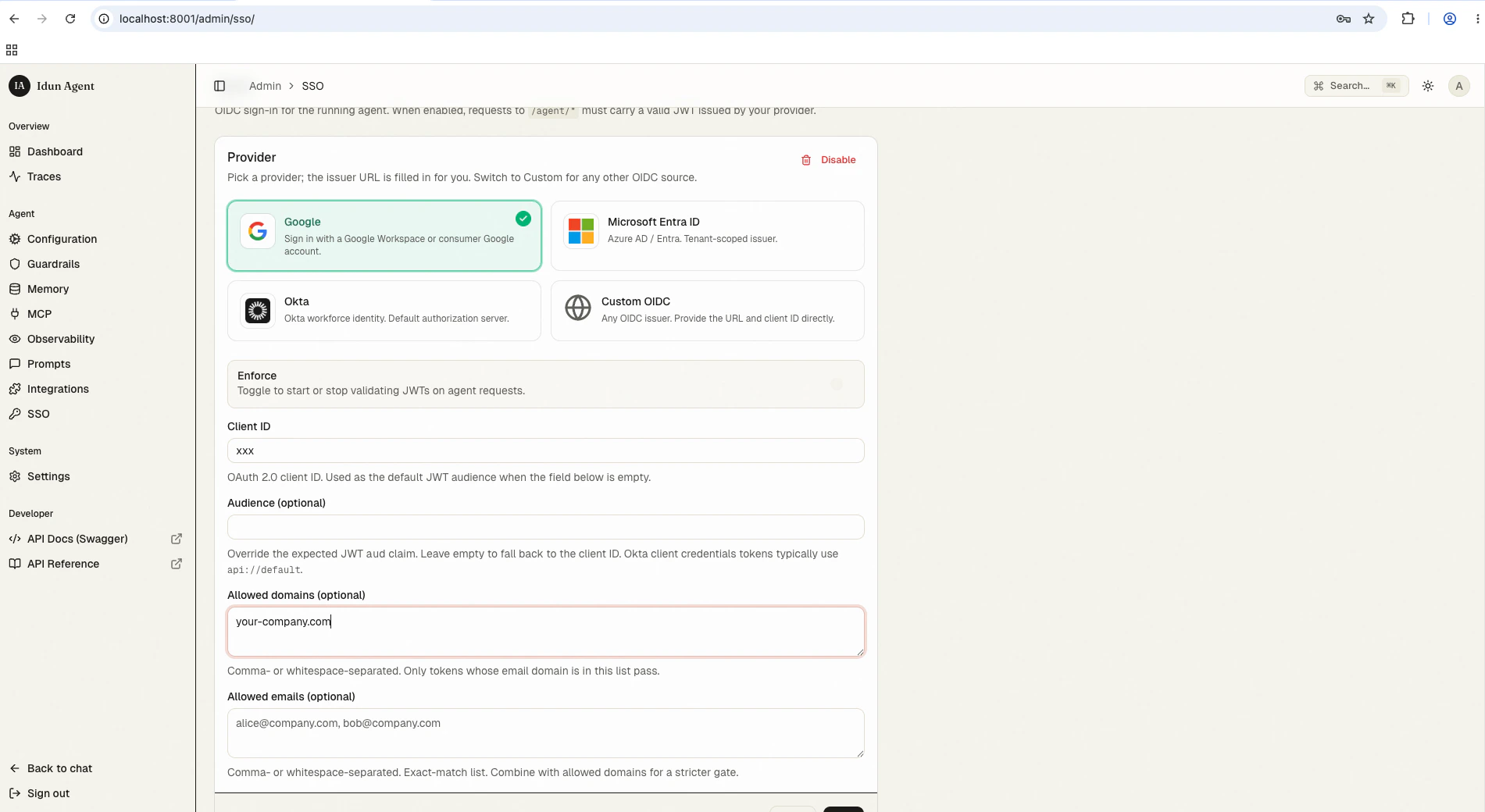

/admin/sso/ with Google OIDC and an idun-group.com allowlist
Fields:
  • Provider: Google
  • Issuer: https://accounts.google.com
  • Client ID: the OAuth client ID from your Google Cloud project
  • Audience: same value as Client ID (default)
  • Allowed domains: idun-group.com
Save. From now on, every request to /agent/run (and the deprecated invoke/stream shims) requires a valid Google JWT whose email claim ends in @idun-group.com. The chat UI at / runs the OAuth handshake automatically and forwards the access token. See SSO for the full validation flow and how to add specific outside emails to allowed_emails.

Run the demo

Open http://localhost:8000/. Sign in with your Google account (the OAuth screen appears once and the cookie sticks for 24h). Send:
Can you fetch the latest GitHub issues, make a summary in a Google Doc, and mail that to me?

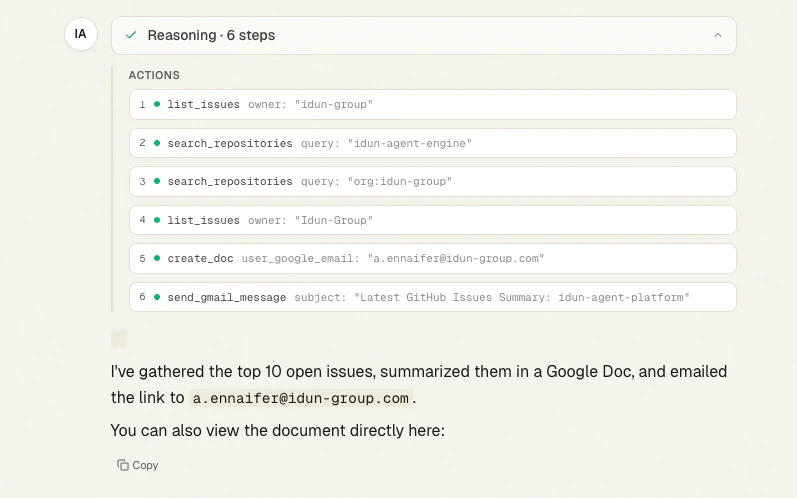

Chat UI showing the multi-tool exchange
The bot streams partial output as the ReAct loop runs. Inline action cards show each call the model emits, the arguments it picks, and the result the tool returns. You also get a collapsed Reasoning card at the top with the agent’s step-by-step plan. By the end of the chain, the agent has:
  1. Called list_issues and search_repositories to find the right repo (Idun-Group/idun-agent-platform) and pull the top open issues.
  2. Created a Google Doc with create_doc, summarizing the issues.
  3. Sent the doc link via send_gmail_message.
And in your inbox:

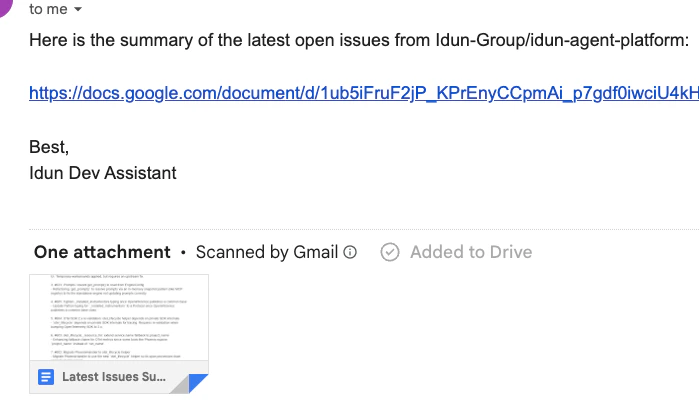

Gmail showing the summary email with the Google Doc attached
Back in the admin panel, /admin/ now reflects the run. Request count, p50/p95 latency, error rate, and total cost all roll up from the same standalone_trace rows the trace viewer reads.
Admin dashboard with activity from the agent run
For deeper debugging open /admin/traces/ and click the run. You get the full span tree (every LLM call and every tool invocation) plus the exact JSON in/out of each tool in the right rail. Useful when the agent picks the wrong tool or passes weird arguments.

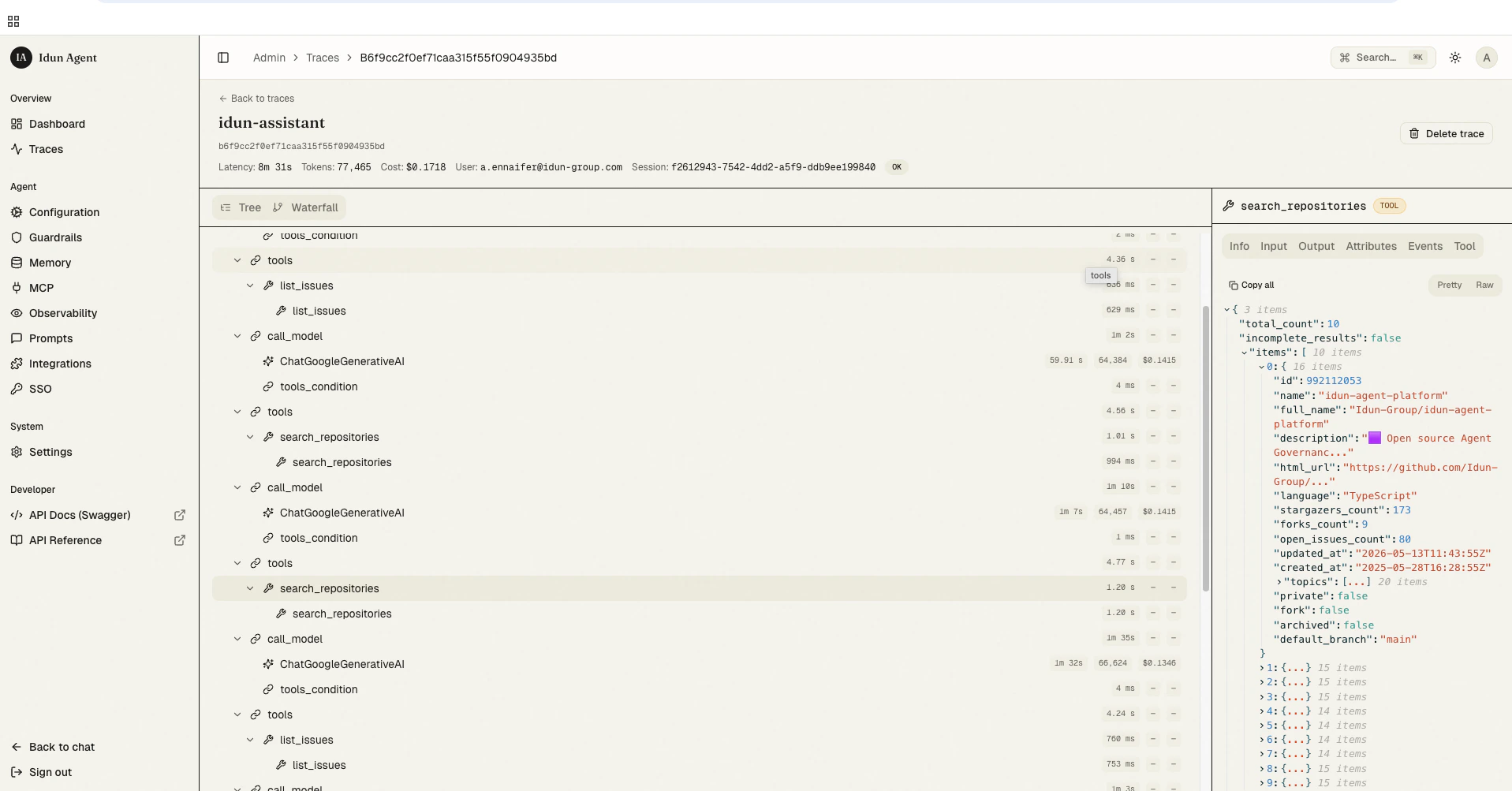

Trace detail for an idun-assistant run
Toggle to the Waterfall view to see where the time actually went. The critical path is highlighted, so you can spot the slow tool call at a glance.

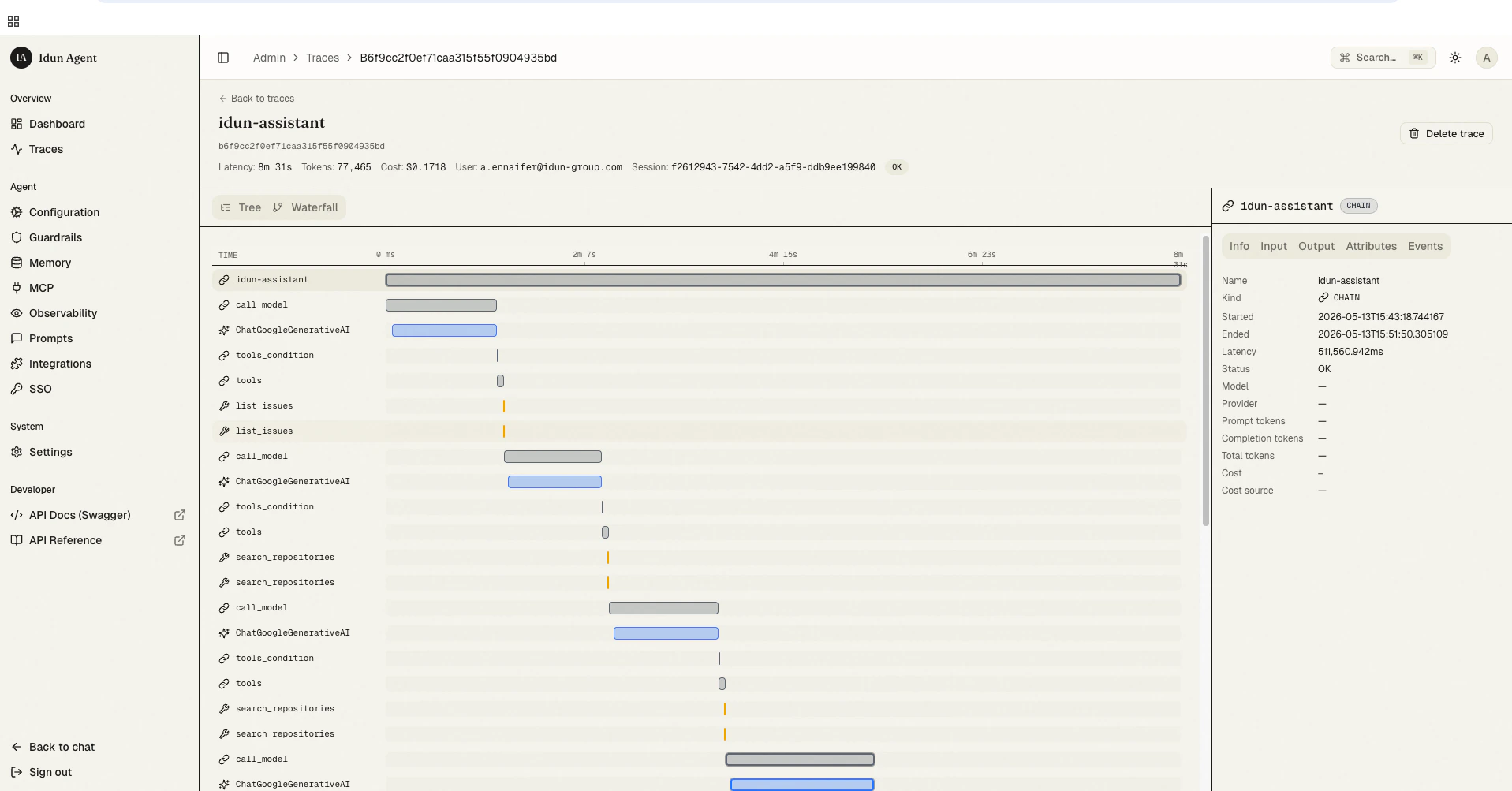

Trace waterfall for the same idun-assistant run
See Local trace store for the trace UI reference.
